Virtual Design

Virtual design lets us draw a part in Solidworks and share it online with a customer in real-time. Parts can be rotated and moved to show all sides.
Modifications can be made to the drawing during the session to meet accelerated schedule demands without wasting time on mailings, meetings, or reviewing static pdf files.

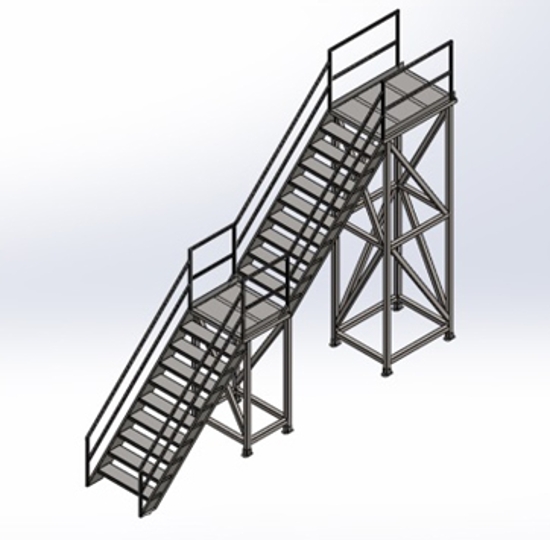

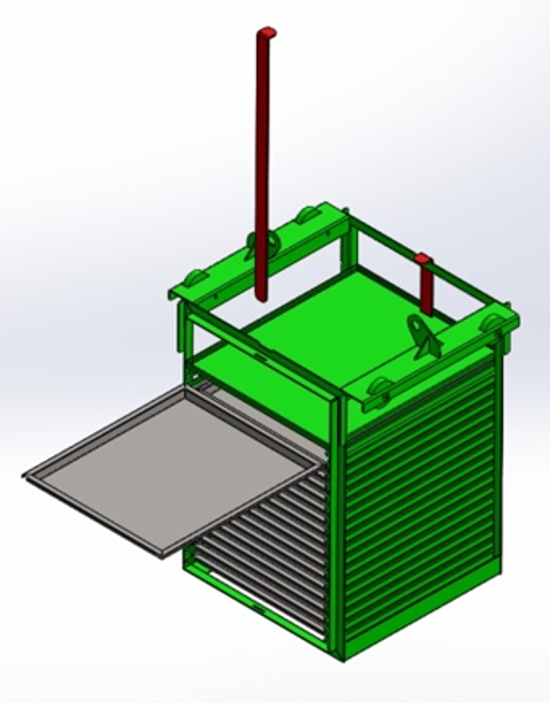

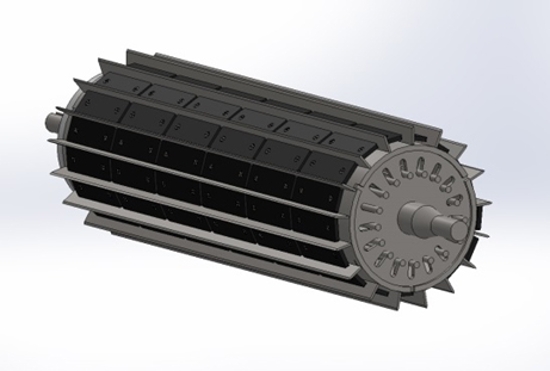

These drawings are projects viewed and modified by screen sharing and phone conversations. Design questions were addressed and modified by virtual design by our staff and the customer.
Drawings and Designs for Quotes
We can use CAD files in the following formats DXF, DWG, SolidWorks, and IGES. Please check with us if you have any questions. Email your files to
We can use PDF files, JPG files, or fax drawings, but we will have to redraw these items in a CAD format completely. We can supply a picture for First Article Approval. This will require design time.
Quoting is seldom a simple process. The more information you are prepared to give us, the quicker and more accurately we can respond to your request for a quote. We need to know the quantity, quality of edge finish, and dimensional accuracy required.
We will work to meet your standards.
  • Quality Systems or 3rd party standards
  • Surface finishing available
    • Natural, or mill finish
    • Bead blast finish
    • Passivation
    • Epoxy Painting
    • Powder Coat Painting

Contact Us Today for more information and quoting
